Sealing between hatch cover and coaming can be achieved by many different types of rubber packing. Traditional the weather tightness of a hatch cover is achived by a sponge rubber packing pressed against the edge of a compression bar. Over the years ships became much larger.therfore the movement between hatch cover and coaming became much bigger .This problem was solved with sliding rubber packing. Sliding rubber packing is pressed against a flat surface in order to be more flexible to bigger hull deformations.

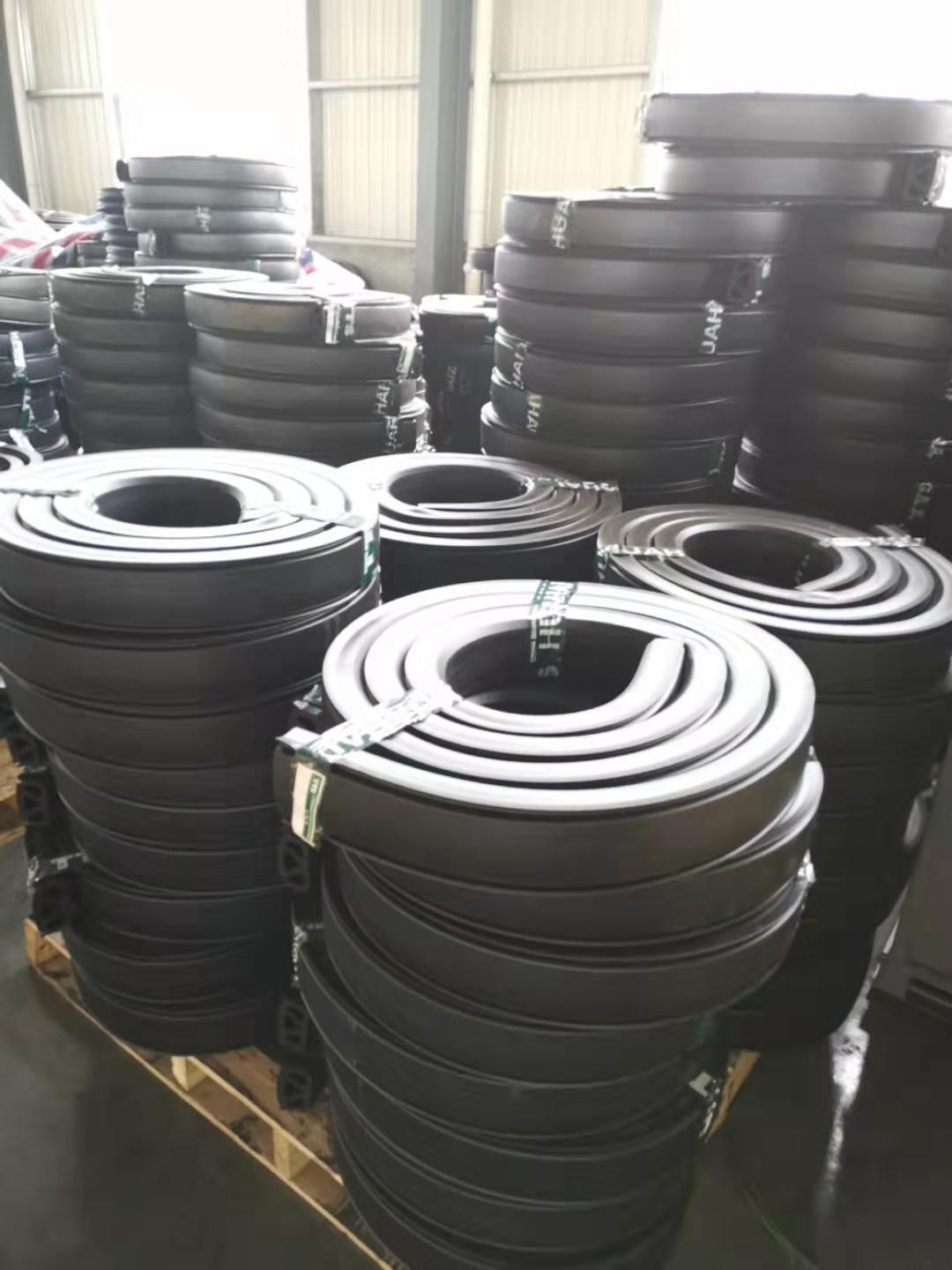

TTS and Macgregor Rubber Seal/Rubber packing supply

HRC.51.0101  FLAT CORNER 94*55 LEFT

HRC.51.0201  FLAT CORNER 94*55 RIGHT

HRC.53.2001  END PIECE 94*55

HRC.69.0101  FLAT CORNOR SEAL LEFT

HRC.69.0201  FLAT CORNOR SEAL RIGHT

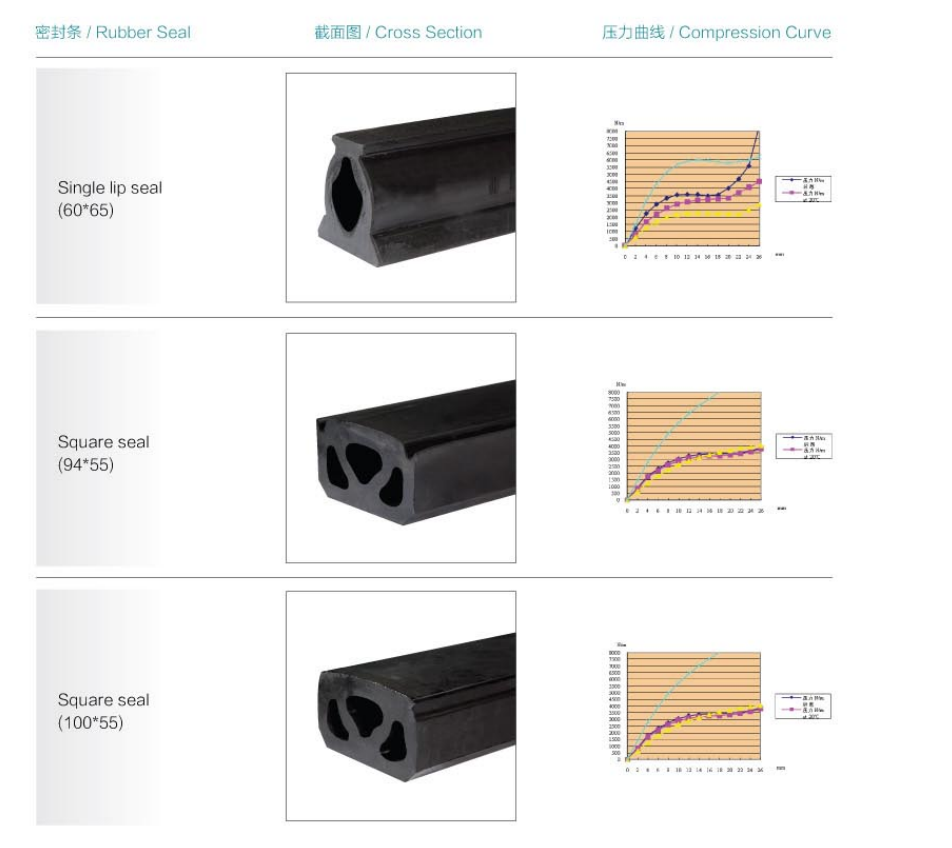

HRC.50.0000  SQUARE SEALING 95*55

HRC.60.0000  SQUARE SEALING 100*55

HRC.69.0101  CORNER SEALING 100*55/94*55

HRC.69.0201  CORNER SEALING 100*55/94*55

HRC 50.000   STRAIGHT SEAL RUBBER PACKING 94 X55

HRC 51.001   90 DEGREES 94 X 55 FLAT CORNER SEAL

DRAWING NO.347-1051   3WAY VERTICAL CORNER (94X55 LEFT)

DRAWING NO.347-1052   3WAY VERTICAL CORNER (94X55 RIGHT)

HRC.52.2001  94X55 END PIECE SEAL

HRC.54.1130   4 WAY CORNER PIECE (94 X 55 LEFT)

HRC.54.1230   4 WAY CORNER PIECE (94X55 RIGHT)

HRC.54.2030   30 DEGREES FLAT END JOINT SEAL

GLU JY-2      3KG/TIN

LOCTITE 495   20G/PC

GLUE-POLYURETHANE  345G/PC

SILICON GREASE FOR RUBBER PACKING
